當前位置：主頁 > 資訊中心 > 技術知識 >

12864點陣液晶顯示測試程序（帶字庫）

發布時間：2018-07-16

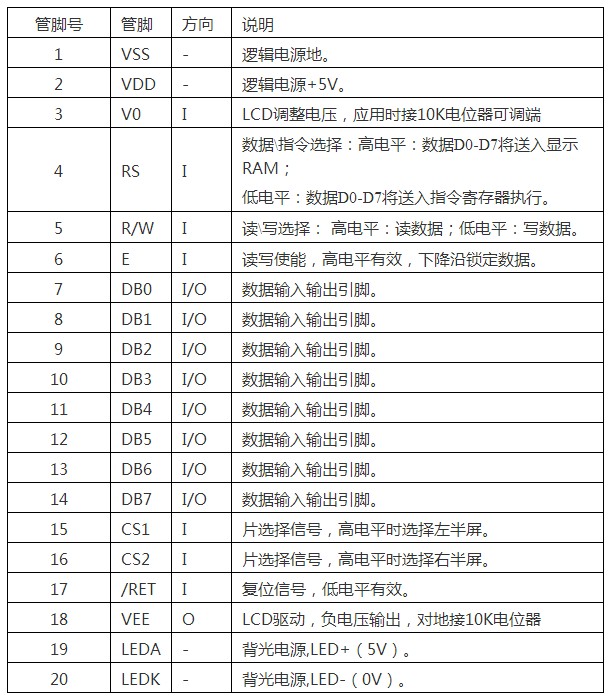

接口說明

1 12864-1

12864點陣液晶顯示測試程序（帶字庫）
測試程序：
#include <reg52.h>

#define uint  unsigned int
#define uchar unsigned char
#define x1    0x80
#define x2    0x88
#define y     0x80
#define comm  0
#define dat   1

sbit rs = P1^1;   //H=data; L=command;
sbit rw = P1^2;   //H=read; L=write;
sbit  e = P1^3;   //input enable;
sbit psb= P1^4;   //H=并口; L=串口;
sbit rst= P1^5;   //Reset Signal 低電平有效

sbit busy=P2^7;   //lcd busy bit

void wr_lcd (uchar dat_comm,uchar content);
void chk_busy (void);
void delay (uint us);

uchar code tab1[]={
"    床前明月光, "
"  疑是地上霜,   "
"舉頭望明月,     "
"低頭思故鄉。    "
};

uchar code tab31[]={
"你的選擇"
"沒有錯  "
};
uchar code tab32[]={
/*--  調入了一幅圖像：D:\Backup\桌面\未命名1.bmp  --*/
/*--  寬度x高度=128x32  --*/
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x01,0xC0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x01,0xE0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x01,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x01,0xFC,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x04,0x06,0x06,0xFF,0xFF,
0xFF,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x04,0x04,0x02,0xFF,0xFF,
0xFF,0x81,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xF1,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0x04,0x04,0x83,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0x04,0x06,0x07,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0x07,0x24,0xE6,0x3F,0xFF,0xFF,
0xFF,0xFD,0xFF,0xFF,0xFC,0xFF,0xFF,0xFF,0xFF,0xFF,0x07,0x64,0xE4,0x3F,0xFF,0xFF,
0xFF,0x03,0xF7,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0x3F,0xFF,0xFF,
0xFF,0x07,0xF0,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0x3F,0xFF,0xFF,
0xFF,0x07,0xF0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0xE4,0x3F,0xFF,0xFF,
0xFF,0x0F,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0x04,0x02,0xFF,0xFF,
0xFF,0x1F,0xF0,0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0x04,0x82,0xFF,0xFF,
0xFF,0x1F,0xF0,0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xFC,0xFF,0xFF,0xFF,0xFF,
0xFF,0x3D,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0x00,0x00,0x00,0xFF,0xFF,
0xFF,0x3D,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0x00,0x00,0x00,0xFF,0xFF,
0xFF,0x79,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF


};

uchar code tab5[]={
/*--  調入了一幅圖像：D:\Backup\桌面\未命名.bmp  --*/
/*--  寬度x高度=128x64  --*/
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x01,0xC0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x01,0xE0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x01,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x01,0xFC,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x04,0x06,0x06,0xFF,0xFF,
0xFF,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x04,0x04,0x02,0xFF,0xFF,
0xFF,0x81,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xF1,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xCF,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0xF3,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0x04,0x04,0x83,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0x04,0x06,0x07,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0x07,0x24,0xE6,0x3F,0xFF,0xFF,
0xFF,0xFD,0xFF,0xFF,0xFC,0xFF,0xFF,0xFF,0xFF,0xFF,0x07,0x64,0xE4,0x3F,0xFF,0xFF,
0xFF,0x03,0xF7,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0x3F,0xFF,0xFF,
0xFF,0x07,0xF0,0xFF,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xE7,0xE4,0xE4,0x3F,0xFF,0xFF,
0xFF,0x07,0xF0,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0xE4,0x3F,0xFF,0xFF,
0xFF,0x0F,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0x04,0x02,0xFF,0xFF,
0xFF,0x1F,0xF0,0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xE4,0x04,0x82,0xFF,0xFF,
0xFF,0x1F,0xF0,0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0xFC,0xFF,0xFF,0xFF,0xFF,
0xFF,0x3D,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0x00,0x00,0x00,0xFF,0xFF,
0xFF,0x3D,0xF0,0xFF,0xFB,0xFF,0xFF,0xFF,0xFF,0xFF,0xF3,0x00,0x00,0x00,0xFF,0xFF,
0xFF,0x79,0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x79,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xF9,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFB,0xFE,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};


/*------------------初始化-----------------*/
void init_lcd (void)
{
  rst=1;
  psb=1;
  wr_lcd (comm,0x30);  /*30---基本指令動作*/
  wr_lcd (comm,0x01);  /*清屏，地址指針指向00H*/
  wr_lcd (comm,0x06);  /*光標的移動方向*/
  wr_lcd (comm,0x0c);  /*開顯示，關游標*/
}
/*---------------顯示漢字或字符----------------*/
void chn_disp (uchar code *chn)
{
  uchar i,j;
  wr_lcd (comm,0x30);
  wr_lcd (comm,0x80);
  for (j=0;j<4;j++)
  {
    for (i=0;i<16;i++)
    wr_lcd (dat,chn[j*16+i]);
  }
}
/*-----------上半屏顯示漢字或字符------------*/
void chn_disp1 (uchar code *chn)
{
  uchar i,j;
  wr_lcd (comm,0x30);
  wr_lcd (comm,0x80);
  j=0;
  for (i=0;i<16;i++)
  wr_lcd (dat,chn[j*16+i]);
  wr_lcd (comm,0x90);
  j=1;
  for (i=0;i<16;i++)
  wr_lcd (dat,chn[j*16+i]);
}
/*----------------顯示圖形-----------------*/
void img_disp (uchar code *img)
{
  uchar i,j;
  for(j=0;j<32;j++)
  {
    for(i=0;i<8;i++)
    {
      wr_lcd (comm,0x34);
      wr_lcd (comm,y+j);
      wr_lcd (comm,x1+i);
      wr_lcd (comm,0x30);
      wr_lcd (dat,img[j*16+i*2]);
      wr_lcd (dat,img[j*16+i*2+1]);
    }
  }
  for(j=32;j<64;j++)
  {
    for(i=0;i<8;i++)
    {
      wr_lcd (comm,0x34);
      wr_lcd (comm,y+j-32);
      wr_lcd (comm,x2+i);
      wr_lcd (comm,0x30);
      wr_lcd (dat,img[j*16+i*2]);
      wr_lcd (dat,img[j*16+i*2+1]);
    }
  }
  wr_lcd (comm,0x36);
}
/*-------------下半屏顯示圖形--------------*/
void img_disp1 (uchar code *img)
{
  uchar i,j;
  for(j=0;j<32;j++)
  {
    for(i=0;i<8;i++)
    {
      wr_lcd (comm,0x34);
      wr_lcd (comm,y+j);
      wr_lcd (comm,x2+i);
      wr_lcd (comm,0x30);
      wr_lcd (dat,img[j*16+i*2]);
      wr_lcd (dat,img[j*16+i*2+1]);
    }
  }
  wr_lcd (comm,0x36);
}
/*--------------顯示點陣----------------*/
void lat_disp (uchar data1,uchar data2)
{
  uchar i,j,k,x;
  x=x1;
  for(k=0;k<2;k++)
  {
    for(j=0;j<16;j++)
    {
      for(i=0;i<8;i++)
      {
        wr_lcd (comm,0x34);
        wr_lcd (comm,y+j*2);
        wr_lcd (comm,x+i);
        wr_lcd (comm,0x30);
        wr_lcd (dat,data1);
        wr_lcd (dat,data1);
      }
      for(i=0;i<8;i++)
      {
        wr_lcd (comm,0x34);
        wr_lcd (comm,y+j*2+1);
        wr_lcd (comm,x+i);
        wr_lcd (comm,0x30);
        wr_lcd (dat,data2);
        wr_lcd (dat,data2);
      }
    }
    x=x2;
  }
  wr_lcd (comm,0x36);
}
/*-----------------------------------------------*/
//當data1=0xff,data2=0xff時,在x0,y0處反白顯示16xl*yl.
void con_disp (uchar data1,uchar data2,uchar x0,uchar y0,uchar xl,uchar yl)
{
  uchar i,j;
  for(j=0;j<yl;j++)
  {
    for(i=0;i<xl;i++)
    {
      wr_lcd (comm,0x34);
      wr_lcd (comm,y0+j);
      wr_lcd (comm,x0+i);
      wr_lcd (comm,0x30);
      wr_lcd (dat,data1);
      wr_lcd (dat,data2);
    }
  }
  wr_lcd (comm,0x36);
}
/*--------------清DDRAM------------------*/
void clrram (void)
{
  wr_lcd (comm,0x30);
  wr_lcd (comm,0x01);
}
/*---------------------------------------*/
void wr_lcd (uchar dat_comm,uchar content)
{
  chk_busy ();
  if(dat_comm)
   {
    rs=1;   //data
    rw=0;   //write
   }
  else
   {
    rs=0;   //command
    rw=0;   //write
   }
  P2=content;   //output data or comm
  e=1;
  ;
  e=0;
}

void chk_busy (void)
{
  P2=0xff;
  rs=0;
  rw=1;
  e =1;
  while(busy==1);
  e =0;
}

void delay (uint us)   //delay time
{
  while(us--);
}
void delay1 (uint ms)
{
  uint i,j;
  for(i=0;i<ms;i++)
  for(j=0;j<15;j++)
  delay(1);
}
/*------------------主程序--------------------*/
void main ()
{
  SP=0x5f;
  init_lcd ();
  while (1)
  {
    lat_disp (0x00,0x00);
    chn_disp (tab1);
    con_disp (0xff,0xff,0x8c,0x80,2,16);
    delay1 (28000);
    clrram();
    lat_disp (0xcc,0xcc);
    delay1 (28000);
    lat_disp (0x00,0x00);
    chn_disp1 (tab31);
    img_disp1 (tab32);
    delay1 (28000);
    clrram();
    lat_disp (0xff,0x00);
    delay1 (28000);
    img_disp (tab5);
    delay1 (28000);
  }
}

12864相關資訊：

LCD12864電路接法

lcd12864中文顯示程序流程圖

lcd12864工作原理

上一篇：LCD12864電路接法

下一篇：lcd1602與lcd12864優缺點

杭州精顯科技有限公司
?
主站蜘蛛池模板： 97人摸人人澡人人人超一碰 | 九九精品免费观看在线 | 久久精品视频观看 | 国产精品久久久久久爽爽爽 | 在线观看片成人免费视频 | 亚洲不卡影院 | 国产乱子伦露脸对白在线小说 | 欧美xxxxbbb| 国产美女作爱视频 | 亚洲日本激情 | 87精品福利视频在线观看 | 亚洲欧美在线一区二区 | 欧美日韩高清观看一区二区 | 最新日韩欧美不卡一二三区 | 免费一级 一片一毛片 | 久久国产免费一区 | 日本欧美一区二区三区不卡视频 | 久久亚洲国产成人亚 | 中文字幕免费在线视频 | 中文字幕亚洲一区二区va在线 | 欧美精品一区二区精品久久 | 国产一级毛片在线 | 久草免费资源在线 | 亚洲国产成人久久三区 | 夜夜爽影院 | 欧美日韩一区二区在线 | 国产成人精品视频一区 | 国产99视频在线观看 | 超清首页 国产 亚洲 丝袜 | 长腿嫩模打开双腿呻吟 | 女人夜色黄网在线观看 | 国产在线一区二区三区四区 | 特级淫片日本高清视频 | 国产区一区二区三区 | 亚洲毛片在线看 | 我要看三级毛片 | 美女一丝不佳一级毛片香蕉 | 国产欧美视频在线观看 | 成人影院一区二区三区 | a毛片视频免费观看影院 | 欧美另类精品 |
